Polypropylene (PP) fittings are commonly used in various piping systems due to their chemical resistance and affordability. Understanding the connection technologies for these fittings is crucial for ensuring effective and reliable installations. This article explores the primary connection methods used for PP fittings, including socket fusion, threaded connections, and flanged connections.
1. Socket Fusion
Socket fusion is one of the most widely used methods for connecting PP fittings. This technique involves heating the ends of the pipe and fitting until they become molten and then joining them together. The process results in a strong, seamless connection.
Process: To perform socket fusion, a special heating tool is used. The pipe and fitting ends are heated until they reach the required temperature. They are then quickly joined and held together until the material cools and solidifies.
Advantages: Socket fusion creates a strong bond with minimal risk of leaks. It is suitable for a range of sizes and provides a smooth, continuous flow through the connection.
Applications: Commonly used in water distribution systems and chemical processing, where a robust and leak-proof connection is required.
2. Threaded Connections
Threaded connections involve connecting PP fittings using screw threads. These fittings have male or female threads that engage with corresponding threads on other components. This method is less common for PP compared to metals but still useful in some applications.
Process: Threaded PP fittings are screwed into place manually or using tools. Thread sealant or tape is often applied to ensure a tight seal and prevent leaks.
Advantages: Threaded connections are easy to assemble and disassemble, making them ideal for applications where frequent maintenance or adjustments are needed.
Applications: Suitable for smaller diameter pipes and fittings, such as in residential plumbing or HVAC systems where ease of disassembly is beneficial.
3. Flanged Connections
Flanged connections involve joining PP fittings with flanges that are bolted together. This method provides a secure and reliable connection, especially in larger diameter systems.
Process: Flanged fittings have flat, circular surfaces with bolt holes. These flanges are aligned with corresponding flanges on pipes or equipment. Bolts and nuts are used to secure the connection.
Advantages: Flanged connections allow for easy installation and removal. They can accommodate slight misalignments and provide a robust seal.
Applications: Often used in industrial applications, such as in chemical processing or large-scale water treatment systems, where high pressure and flow rates are involved.

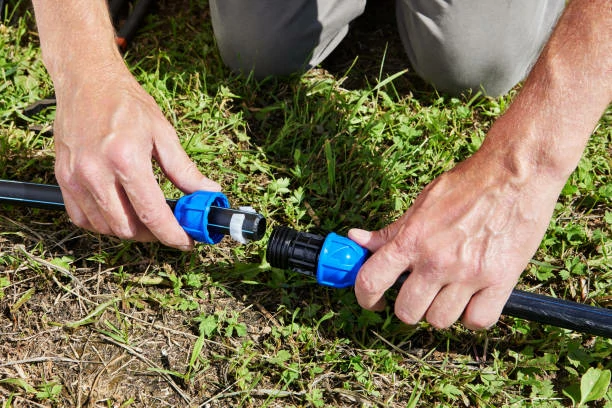

4. Compression Connections
Compression connections are another method used for PP fittings. This technique involves using a compression fitting that grips the pipe and fitting tightly.
Process: Compression fittings consist of two parts: a fitting and a compression ring. The pipe is inserted into the fitting, and the compression ring is tightened around it to create a secure seal.
Advantages: Compression fittings are easy to install without the need for heat or specialized tools. They are adjustable and can be reused.
Applications: Useful in applications where flexibility and ease of installation are required, such as in residential plumbing or irrigation systems.
5. Push-Fit Connections
Push-fit connections are becoming increasingly popular for PP fittings. This method involves pushing the pipe into the fitting, which is designed to grip the pipe securely.
Process: Push-fit fittings have a rubber seal or gripping mechanism inside. When the pipe is inserted, the seal grips the pipe, creating a tight connection.
Advantages: Push-fit connections are quick and easy to install without the need for tools or heat. They also allow for easy disassembly and reassembly.
Applications: Commonly used in residential and light commercial applications where ease of installation and maintenance are important.
6. Welding Techniques
In addition to socket fusion, other welding techniques can be used for PP fittings. These techniques include electrofusion and hot air welding.
Electrofusion: This method involves using an electrofusion fitting with embedded heating elements. When an electric current is applied, the fitting heats up and melts, joining it to the pipe.
Hot Air Welding: In hot air welding, a hot air tool is used to heat the pipe and fitting ends. Once heated, they are pressed together to form a weld.
Advantages: Both methods provide strong, reliable connections suitable for various applications. They are particularly useful for larger diameter pipes or where precise control of the welding process is needed.
7. Advantages and Disadvantages of Each Method
Each connection method for PP fittings has its own set of advantages and disadvantages, which affect their suitability for different applications.
Socket Fusion: Offers a strong, permanent connection but requires specialized equipment and training.
Threaded Connections: Easy to install and remove but may be prone to leaks if not properly sealed.
Flanged Connections: Provides a secure, robust connection but requires additional hardware and space.
Compression Connections: Flexible and easy to install but may not be suitable for high-pressure applications.
Push-Fit Connections: Quick and simple to use but may not be as durable under extreme conditions.
Welding Techniques: Strong and reliable connections but require precise control and equipment.
8. Maintenance and Inspection
Proper maintenance and inspection are crucial for ensuring the longevity and performance of PP fittings, regardless of the connection method used.
Regular Inspection: Check for signs of wear, leaks, or damage. Regular inspection helps prevent issues before they become serious.
Cleaning: Keep fittings clean to prevent blockages and maintain flow efficiency. Avoid harsh chemicals that may damage the PP material.
Repair and Replacement: Address any issues promptly. Replace damaged fittings to maintain system integrity and prevent leaks.
9. Industry Standards and Compliance
Ensuring that PP fittings and their connections meet industry standards is essential for safety and performance.
Standards: Follow relevant standards such as those from ASTM (American Society for Testing and Materials) or ISO (International Organization for Standardization). These standards ensure quality and compatibility.
Certifications: Look for certifications or quality marks indicating that the fittings meet established standards and have passed rigorous testing.
10. Conclusion
Understanding the various connection technologies for PP fittings is essential for effective piping system design and installation. Each method—socket fusion, threaded, flanged, compression, push-fit, and welding—offers unique benefits and is suited to different applications. By considering factors such as ease of installation, durability, and application requirements, you can select the most appropriate connection method for your needs. Regular maintenance and adherence to industry standards ensure the reliability and longevity of PP fittings in various systems.
